NSK HR32936J P4 Single Row Tapered Roller Bearings 180x250x45mm

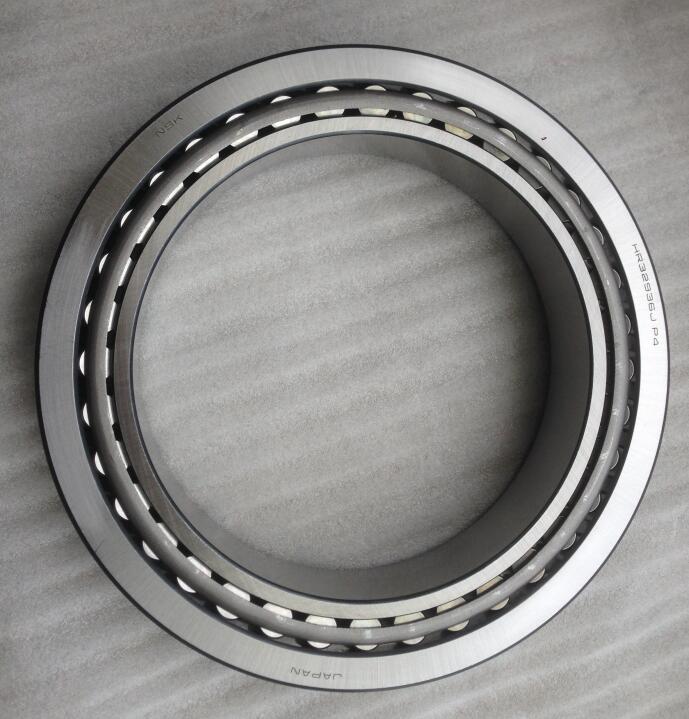

NSK HR32936J P4 Single Row Tapered Roller Bearings 180x250x45mm

Products Visitors: 13930

Product Name: NSK HR32936J P4 Single Row Tapered Roller Bearings 180x250x45mm
Material: GCr15 bearing steel
Level: P0 P6 P5 P4
Download: NSK HR32936J P4 Single Row Tapered Roller Bearings 180x250x45mm.pdf

Detailed Product Description: NSK HR32936J P4 Single Row Tapered Roller Bearings 180x250x45mm

Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle (α). The size of the angle is indicated by the calculation factor e († product tables): the larger the value of e, the larger the contact angle. A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. Single row tapered roller bearings are separable , i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).

32936Tapered roller bearings Specification:

China Bearing Manufacturer 180x250x45 mm Single Row Tapered Roller Bearings 32936

Related Tapered Roller Bearing Catalogue:

dimensions			Designation
d	D	T
mm
158.75	205.583	23.813	L 432349/310
158.75	205.583	23.812	L 432348/310
160	220	32	T4DB 160
160	290	84	32232 J2
160	240	51	32032 X
160	245	61	T4EE 160/VB406
160	290	52	30232 J2
160	340	75	30332 J2
170	310	57	30234 J2
170	230	32	T4DB 170
170	230	38	32934
170	310	91	32234 J2
177.8	227.012	30.162	36990/36920
178.595	265.112	51.595	M 336948/912
179.934	265.112	51.595	M 336949/912
180	320	91	32236 J2
180	240	32	T4DB 180
180	250	45	32936
180	280	64	32036 X
187.325	282.575	50.8	87737/87111
190	260	46	JM 738249/210
190	340	97	32238 J2
190	260	45	32938
190	290	64	32038 X
190.475	279.4	52.388	M 239449/410
190.5	282.575	50.8	87750/87111
191.237	279.4	53.975	M 239448 A/410
196.85	241.3	23.812	LL 639249/2/210/4
196.85	257.175	39.688	LM 739749/710/VE174
196.85	241.3	23.812	LL 639249/210
200	360	104	32240 J2
200	280	51	32940
200	310	70	32040 X
200	270	37	T4DB 200
200	360	64	30240 J2
200.025	276.225	42.862	LM 241147/110/VQ051
203.987	276.225	42.862	LM 241148/110/VQ051
206.375	282.575	46.038	67985/67920/HA3VQ117
216.408	285.75	46.038	LM 742747/710
216.713	285.75	46.038	LM 742747 A/710
220	340	76	32044 X
220	300	51	32944
220	400	72	30244 J2
220	285	41	T2DC 220
230.188	317.5	42.862	LM 245846/810
231.775	300.038	33.338	544091/2B/118 A/2B
231.775	317.5	47.625	LM 245848/810
240	360	76	32048 X
240	320	51	32948
240	320	57	T2EE 240/VB406
240	440	127	32248 J3
240	320	42	T4EB 240/VE174
254	533.4	133.35	BT1B 332901
254	533.4	133.35	HH 953749/710
255.6	342.9	57.15	M 349547/510
257.175	358.775	71.438	M 249747/710
257.175	342.9	57.15	M 349549/510/VE174
260	540	109	BT1B 332973
260	480	137	32252 J2
260	400	87	32052 X
260	540	113	30352 J2
263.525	325.438	28.575	38880/38820
280	420	87	32056 X
280	500	137	32256 J2
280	380	63.5	32956/C02
292.1	374.65	47.625	L 555249/210/VE174
292.1	374.65	47.625	L 555249/210
300	540	149	32260 J2/HA1
300	420	76	32960
300	495.3	141.288	HH 258248/210
300	460	100	32060 X
304.8	393.7	50.8	L 357049/010/VE174
304.8	546.1	171.053	BT1B 617089 B
320	620	141	332303
320	440	76	32964
320	480	100	32064 X
330.2	482.6	85.725	EE 526130/526190
333.375	469.9	90.488	HM 261049/010
340	460	76	32968
343.154	450.85	66.675	LM 361649 A/610
346.075	488.95	95.25	HM 262749/710
355.6	482.6	60.32	431884 A
360	680	165	332302
360	480	76	32972
381	479.425	49.213	L 865547/512
384.175	546.1	104.775	HM 266449/410
403.225	460.375	28.575	LL 566848/810/HA1
406.4	549.275	85.725	LM 567949/910/HA1
406.4	762	180.975	H 969249/210/HA4
406.4	508	61.912	L 467549/510
406.4	574.675	76.2	EE 285160/285226
415.925	590.55	114.3	M 268749/710
430.212	603.25	76.2	EE 241693/242375
431.8	571.5	89.694	BT1B 328284/HA1
431.902	685.698	177.8	BT1B 332900
447.675	635	120.65	M 270749/710
457.2	573.088	74.612	L 570649/610
457.2	660.4	91.28	EE 737181/737260
457.2	603.25	85.725	LM 770949/910
457.2	615.95	85.725	LM 272235/210
460	860	210	332304
460	860	210	332304 A
479.425	679.45	128.588	BT1B 332529/HA1
479.425	717.55	136.525	BT1-8003/HA1
480	950	240	332263
482.6	634.873	80.962	EE 243190/243250
488.95	634.873	84.138	LM 772748/710/HA1
498.399	634.873	80.962	EE 243196 AX/243250
498.475	634.873	80.962	EE 243196/243250/HA2
520.7	736.6	88.9	EE 982051/982900
536.575	820	152	BT1B 328017/HA4
536.575	761.873	146.05	M 276449/410
539.75	635	50.8	LL 575349/310
549.199	692.15	80.963	L 476549 AX/510
549.275	692.15	80.963	L 476549/510
558.8	736.6	88.108	EE 843220/843290
558.8	736.6	104.775	LM 377449/410
560	1080	265	BT1B 334018/HA5
607.72	787.4	93.662	EE 649239/649310
609.6	787.4	93.662	EE 649240/649310
635	736.6	57.15	80780/80720
660.4	939.8	136.525	332383
660.4	1000	152.4	BT1B 334140/HA4
660.4	812.8	95.25	L 281147/110
679.45	901.7	142.875	LM 281849/810/HA4
680	1000	190	BT1B 332787/HA4
682.625	1080	200	BT1B 332705/HA4
682.625	965.2	185.738	332283
685.8	876.3	93.662	EE 655270/655345
710	950	113	BT1B 332890/HA1
711.2	939.8	120.65	BT1B 328068/HA4
723.9	914.4	84.138	EE 755285/755360
749.3	990.6	159.5	LM 283649/610/HA1
760	889	69.85	LL 483448/418
760	889	88.9	L 183448/410
762	889	88.9	L 183449/410
762	889	69.85	LL 483449/418
774.7	965.2	93.662	EE 752305/752380
801.688	914.4	58.738	LL 584449/410
838.2	1041.4	93.662	EE 763330/763410
857.25	1092.2	120.65	EE 157337/157430
900	1180	122	BT1B 328214/HA5
977.9	1130.3	66.675	LL 687949/910
1016	1270	101.6	EE 168400/168500
